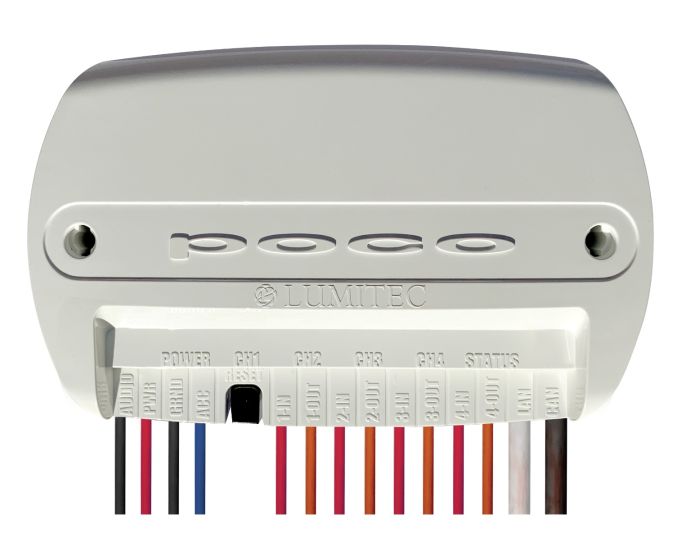

Poco 4 Digital Lighting Control Module

SKU

101925

Poco 4 Digital Lighting Control is a low-cost, easy-to-install and set-up, onboard digital lighting control system that provides full control over all your Lumitec (PLI enabled) lights at the touch of a button from any compatible MFD or connected smart device. Poco 4 is the latest iteration of the award-winning Poco system and introduces new innovative features such as intelligent sound-to-light, NMEA 2000 compatibility, and CANbus integration.

Suitable for new builds or refits, the Poco 4 Control Module is compact and completely sealed. Because it replaces physical circuits, wires, and switches, builders will often find that they can save money while offering their customers the sophisticated control previously found only on high-end yachts.

Poco 4 is compatible with Lumitec's Pico Expansion Modules, which extend the power and reach of the Poco Digital Lighting Control system, making it possible to control other manufacturers’ luminaires, lighting accessories, and devices that do not have the sophisticated PLI technology built-in).

Increase Down Increase Up
Product Name Poco 4 Digital Lighting Control Module
CE Certified Yes
Depth 1.24 in (3.14cm)
Finish / Housing White
Height 3.5 in (8.89cm)
IP Rating 67
Max Amp/ch 10A
Number of Channels 4
Op. Temp F/C -31/35 to + 131/55
PLI Enabled Yes
Sub Category Poco System
Timed Toggled Protocol (TTP) Yes
UL Certified No
Voltage 10vDC-30vDC
Width 5.5 in (13.97cm)
