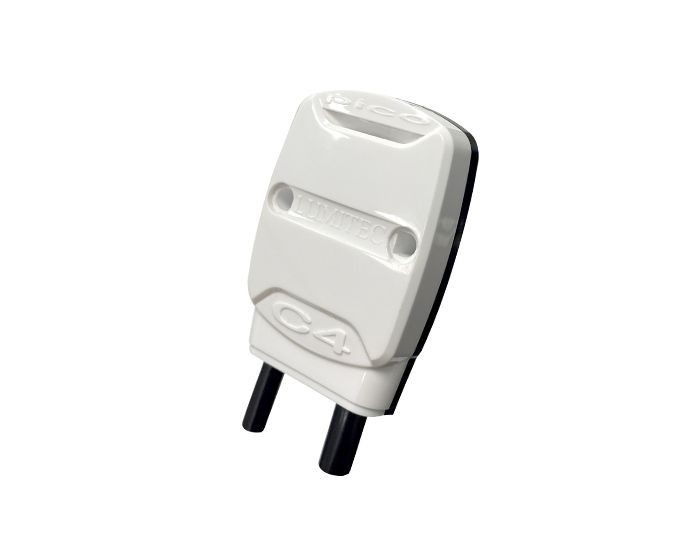

Pico C4 Expansion Module

SKU

101609

Pico Expansion Modules extend the power and reach of the Poco Digital Lighting Control system making it possible to control other manufacturers’ luminaires, lighting accessories and devices that do not have the sophisticated PLI technology built-in.

The Pico C4 Module provides Poco or TTP control of third-party RGB or RGBW lighting accessories. This means that everything from lighted speakers to cupholders can be controlled through the Poco system. On vessels not equipped with the Poco system, the Pico C4 provides control of color and intensity through any normal on/off switch, using Lumitec’s field-proven TTP protocol.

Increase Down Increase Up
Product Name Pico C4 Expansion Module
CE Certified Yes
Color Output C4 Expansion Module
Depth 0.52 in (1.32cm)
Finish / Housing White
Height 2.6 in (6.60cm)
IP Rating 67
Max Amp/ch 2.5A
Number of Channels 4
Op. Temp F/C -31/35 to + 131/55
PLI Enabled Yes
Sub Category Pico Expansion Modules
Timed Toggled Protocol (TTP) Yes
UL Certified No
Voltage 10vDC-30vDC
Width 1.9 in (4.82cm)
