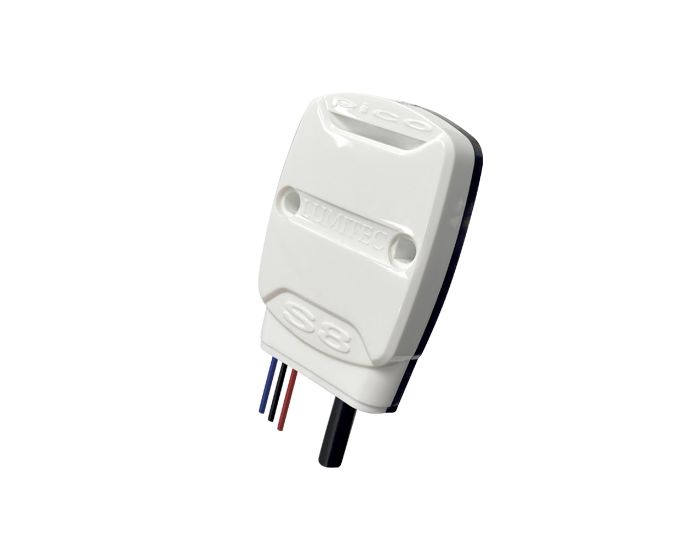

Pico S8 Expansion Module

SKU

101684

Pico Expansion Modules extend the power and reach of the Poco Digital Lighting Control system making it possible to control other manufacturers’ luminaires, lighting accessories and devices that do not have the sophisticated PLI technology built-in.

The Pico S8 moudule provides the ability to assign Poco virtual switch commands to physical mechanical switches (up to 8 max). This means that your MFD can remain on a dedicated screen, or even be turned off, and a physical switch will activate the virtual switch command through the Poco module.

Increase Down Increase Up

Specifications

Specifications
Product Name Pico S8 Expansion Module
Finish / Housing White
Voltage 10vDC-30vDC
Number of Channels 8
Max Amp/ch 0.25A
Op. Temp F/C -31/35 to + 131/55
Height 2.6 in (6.60cm)
Width 1.9 in (4.82cm)
Depth 0.52 in (1.32cm)
IP Rating 67
PLI Enabled Yes
Timed Toggled Protocol (TTP) Yes
CE Certified Yes
UL Certified No
Sub Category Pico Expansion Modules
